DRILL 101 CNC Drilling and Milling

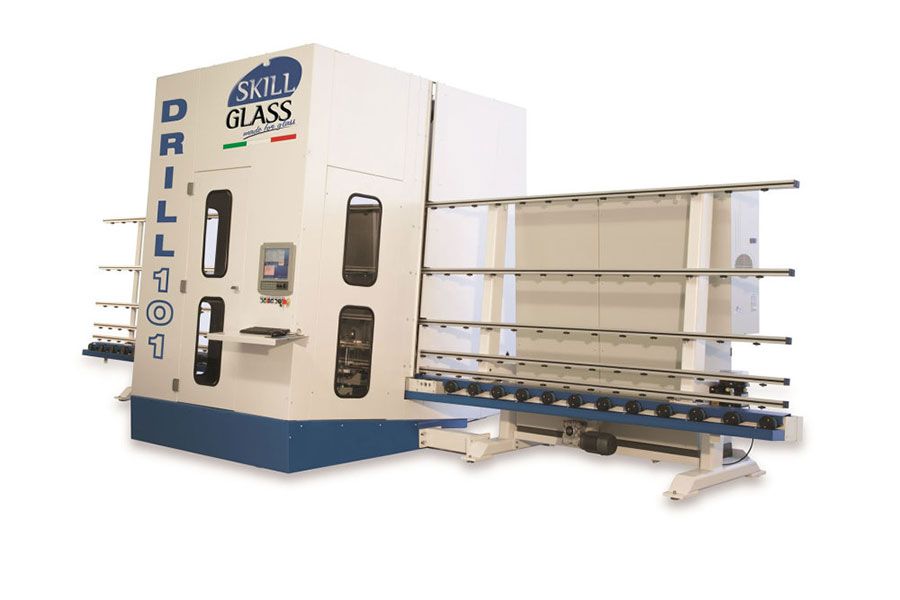

DRILL 101 is a 6-axis CNC drilling machine designed for producing holes, inserts and countersinks on flat glass sheets with a thickness of 3-21 mm. The machine is composed of six interpolated axes, X XG Y V Z W, and two electro-spindles which, as opposite drilling heads, create a double-sided drilling system that drills perfect holes.

Machining
PDF Data Sheet
Video

The machine can perform multiple machining processes:

DRILLING: thanks to the opposing heads, this is done at maximum speed and always ensures excellent quality and precision.
CONTERSINKING: this can be done either with individual diamond tools and adjusted through the program in accordance with customers’ needs, or with accessories fitted on diamond drill bits
MILLING: this operation is simple and fast thanks to the multiple tools: the machine can mill and grind an insert in just a few seconds.

Key Benefits...

Sheets manoeuvred by vacuum belts

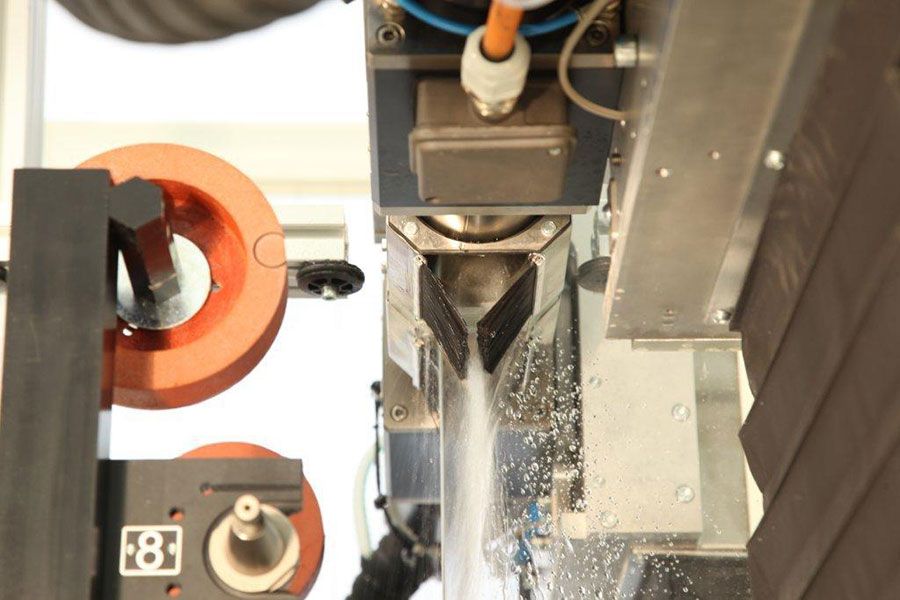

Drilling with opposing heads
ISO 40 4 kW electro-spindles

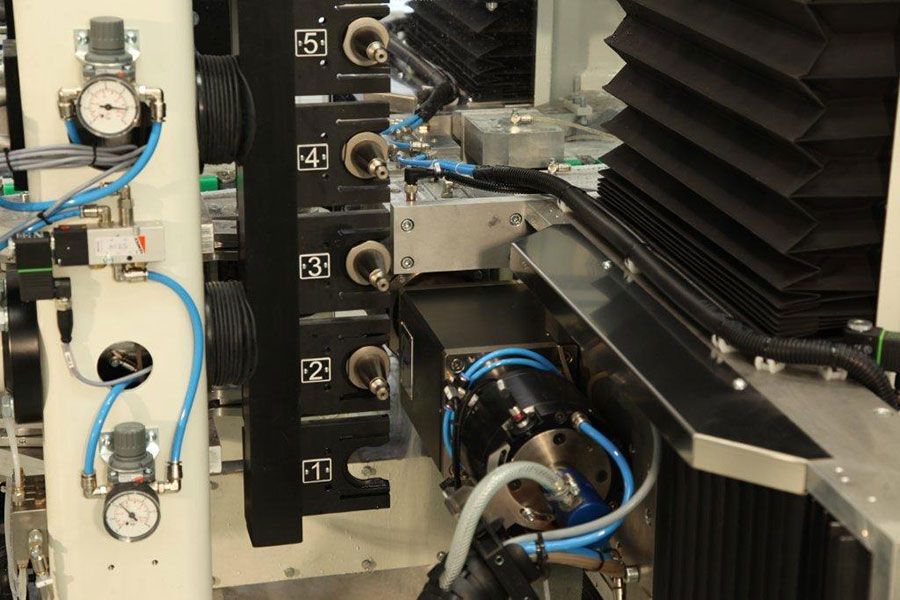

Automatic tool changer in 12+12 positions
Maximum precision and speed
Minimal maintenance
Vibration-free and long service life
